Monel

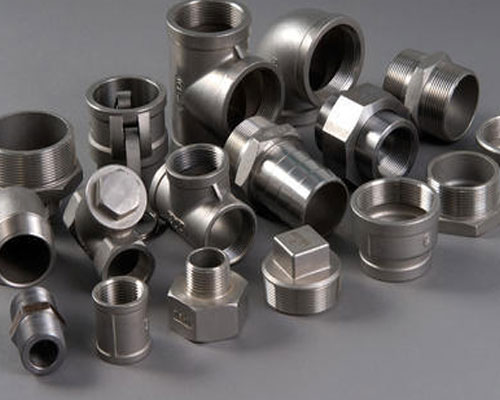

Monel Pipe Fittings

Specification	ASTM B366, ASME B366, ASTM B564, ASME SB564, ASTM B865, ASME SB865
Grade	Alloy 400/Monel 400/UNS N04400/2.4360, Alloy K-500/Monel K-500/UNS N05500/2.4361
Type	Seamless / Welded / Fabricated
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range	½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.

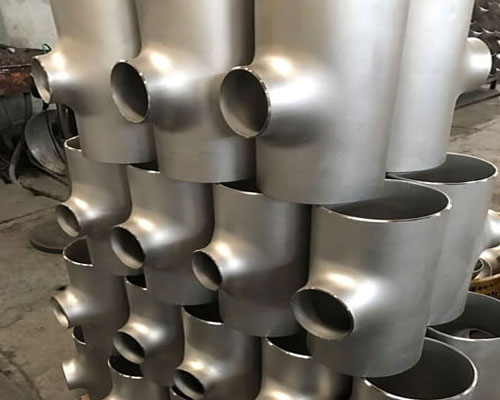

Monel 400 Pipe Fittings

Specification :	ASTM B 366 / ASME SB 366
Dimensions :	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size :	Seamless Pipe Fittings: 1/2" – 10", Welded Pipe Fittings: 1/2" – 48"
Thickness :	Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS
Types :	Seamless / ERW / Welded / Fabricated
Grades :	Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)

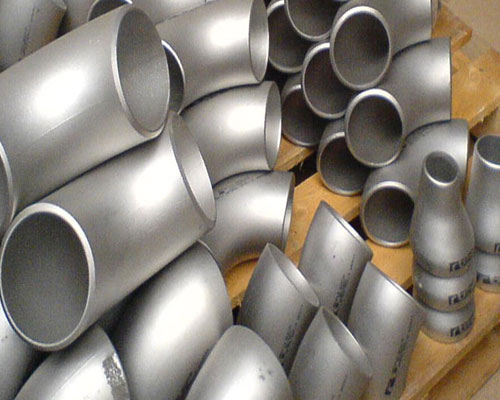

Monel K500 Pipe Fittings

Specification :	ASTM B 366 / ASME SB 366
Dimensions :	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size :	Seamless Pipe Fittings: 1/2" – 10", Welded Pipe Fittings: 1/2" – 48"
Thickness :	Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS
Types :	Seamless / ERW / Welded / Fabricated
Grades :	Monel K500 (UNS No. N04400), Monel 500 (UNS No. N05500)
